treescatter

Tree scatter plots a scatter marker on each node.

Equivalent to `scatter!(tp.orderedpoints)

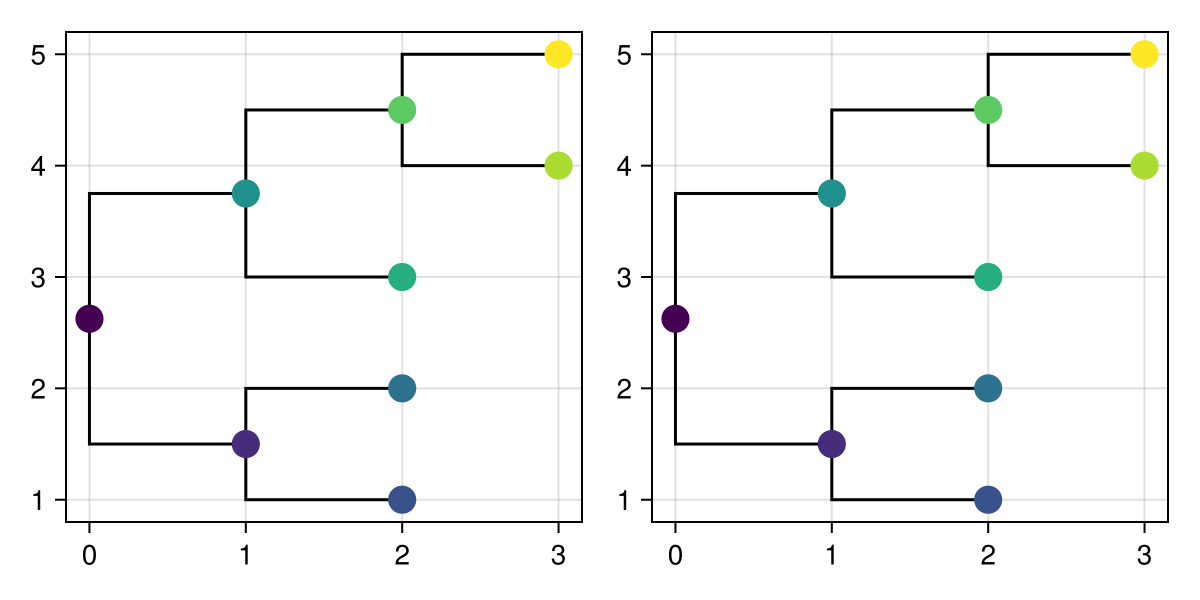

tree = ((:a, :b), (:c, (:d, :e)))
nodeweight= 1:9

fig = Figure(size=(600, 300))
ax, tp = treeplot(fig[1,1], tree)
treescatter!(tp; color=nodeweight, markersize=20)

ax, tp = treeplot(fig[1,2], tree)
scatter!(tp.orderedpoints; color=nodeweight, markersize=20)
fig

Reference

BasicTreePlots.treescatter — Function

treescatter(tp::TreePlot; kwargs...) treescatter!(tp::TreePlot; kwargs...)

Equivalent to calling Makie.scatter!(tp.orderedpoints; kwargs...). The tp.orderedpoints is a Point2f[] vector holding the coordinates of each node in the tree in the order returned by AbstractTrees.PreOrderDFS.

source
