Getting started

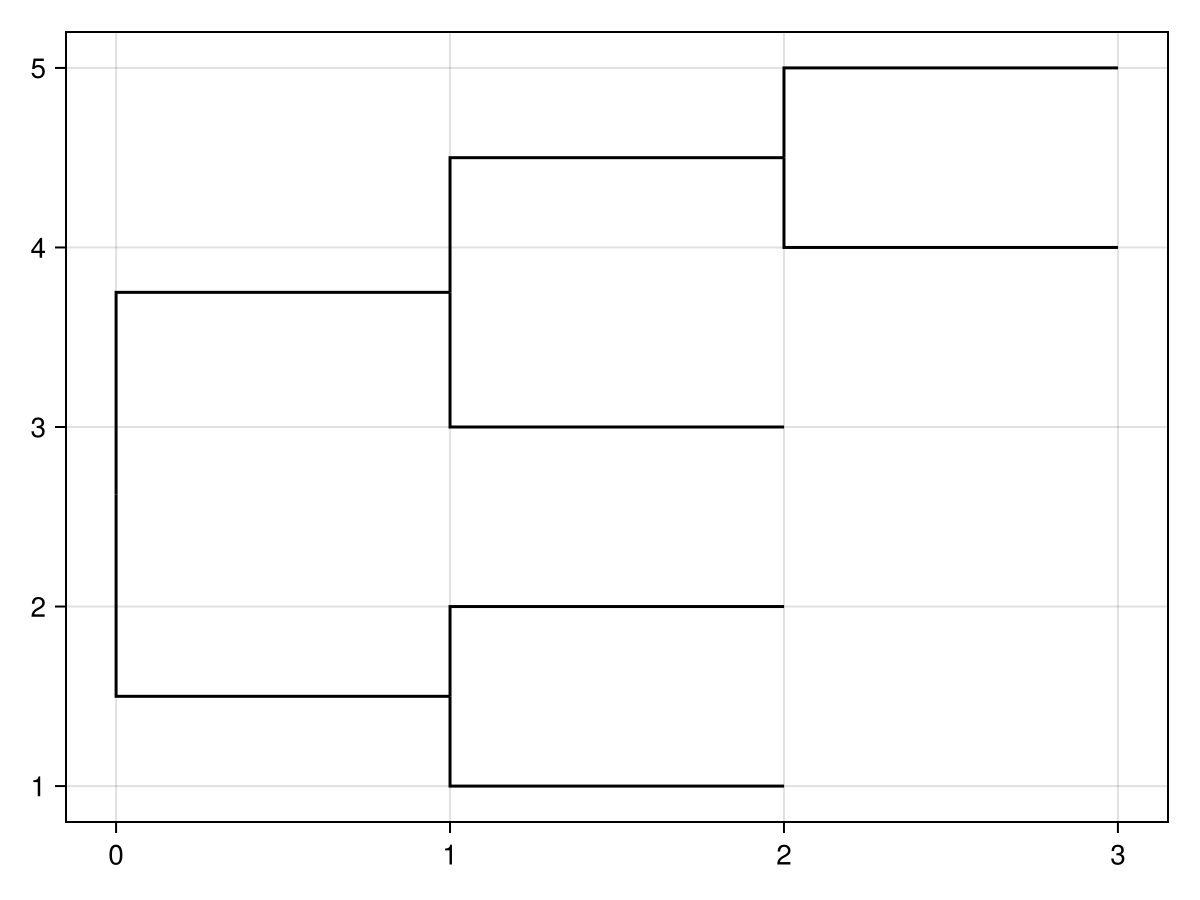

plot the tree

using CairoMakie, BasicTreePlots
tree = ((:a, :b), (:c, (:d, :e)))
treeplot(tree)

Because most nested collections in julia have AbstractTrees.children defined they can be plotted with treeplot.

We might want to just look at the tree rather than the axis

fig = Figure()
ax = Axis(fig[1, 1])
hidedecorations!(ax)
hidespines!(ax)
treeplot!(tree)
fig

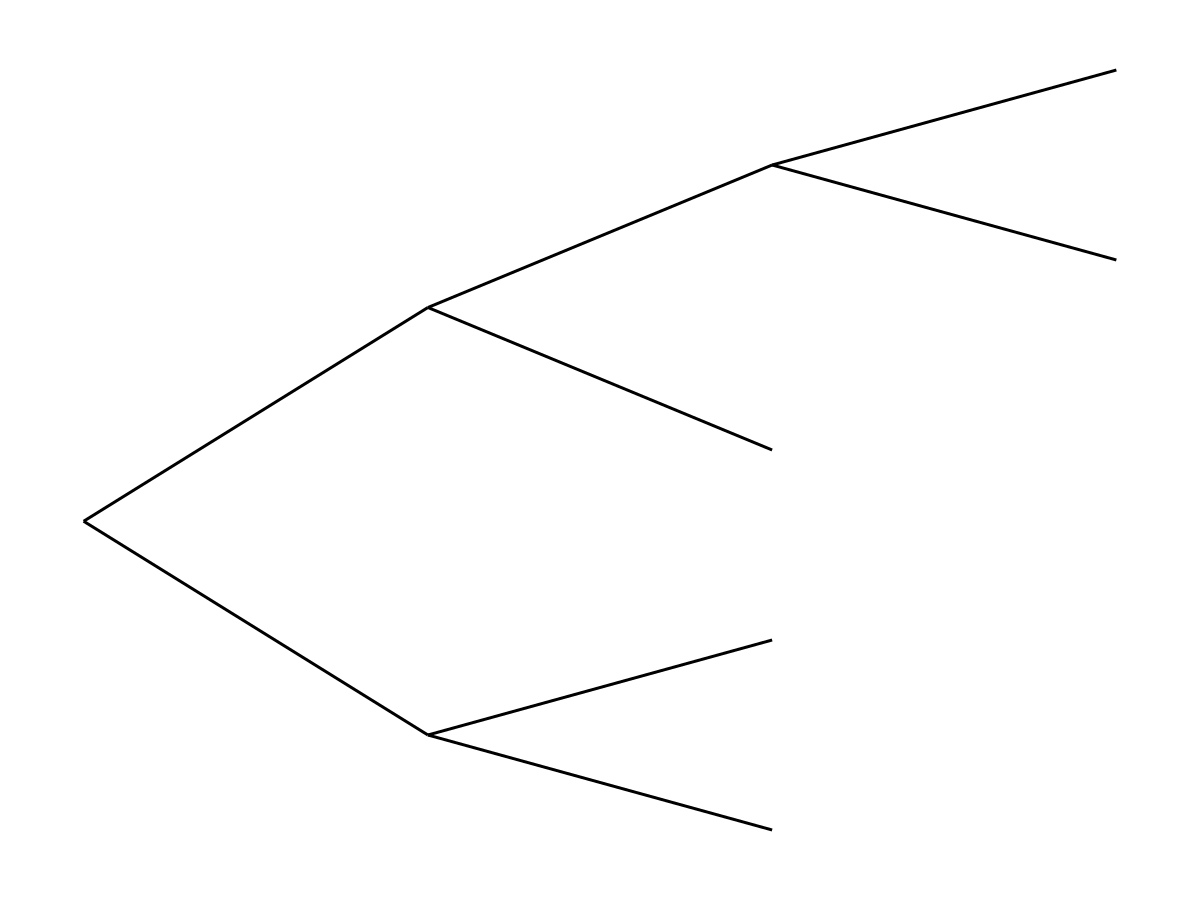

Rather than the square branches we can use straight branches

fig = Figure()
ax = Axis(fig[1, 1])
hidedecorations!(ax)
hidespines!(ax)
treeplot!(tree; branchstyle = :straight)
fig

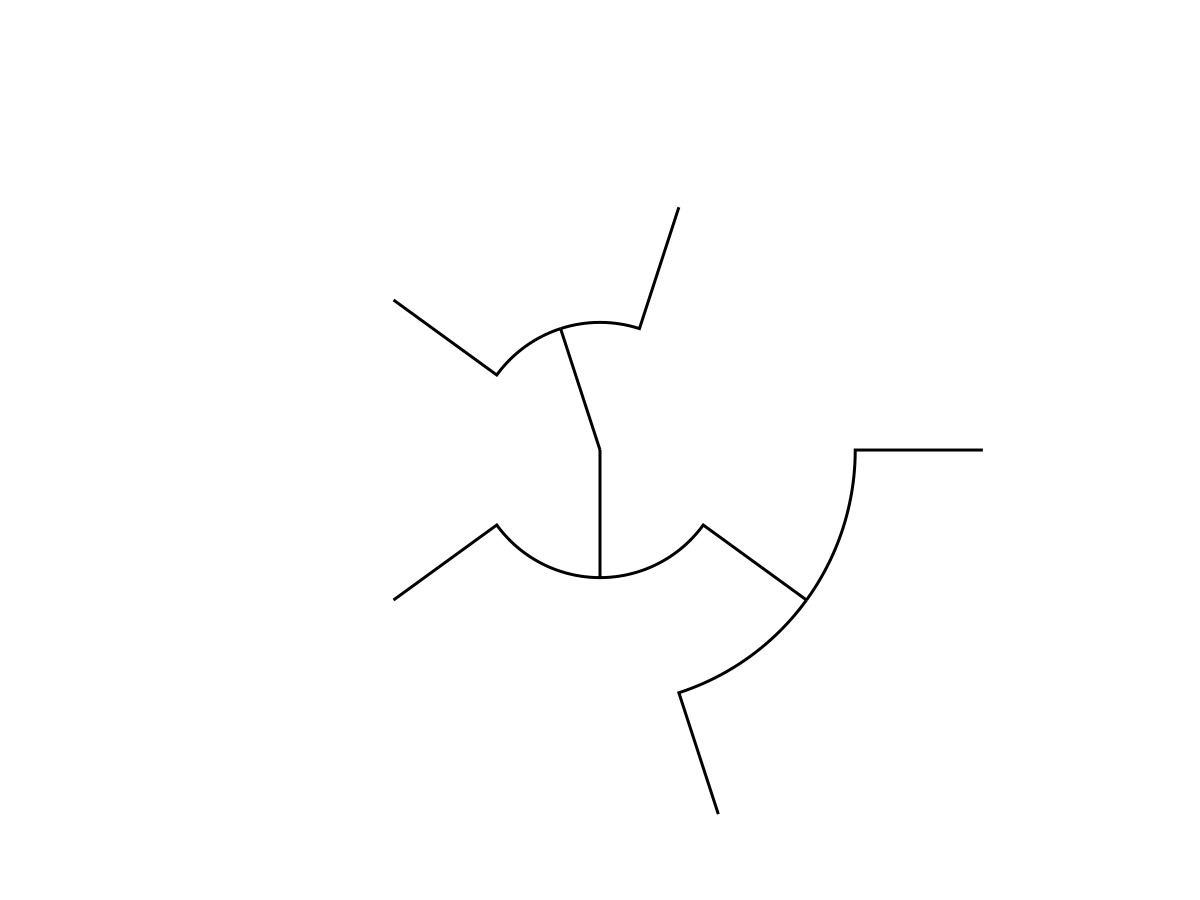

We can plot onto a Polar axis for a circular layout

fig = Figure()
ax = PolarAxis(fig[1, 1])
hidedecorations!(ax)
hidespines!(ax)
treeplot!(tree)
fig

Labeling tips

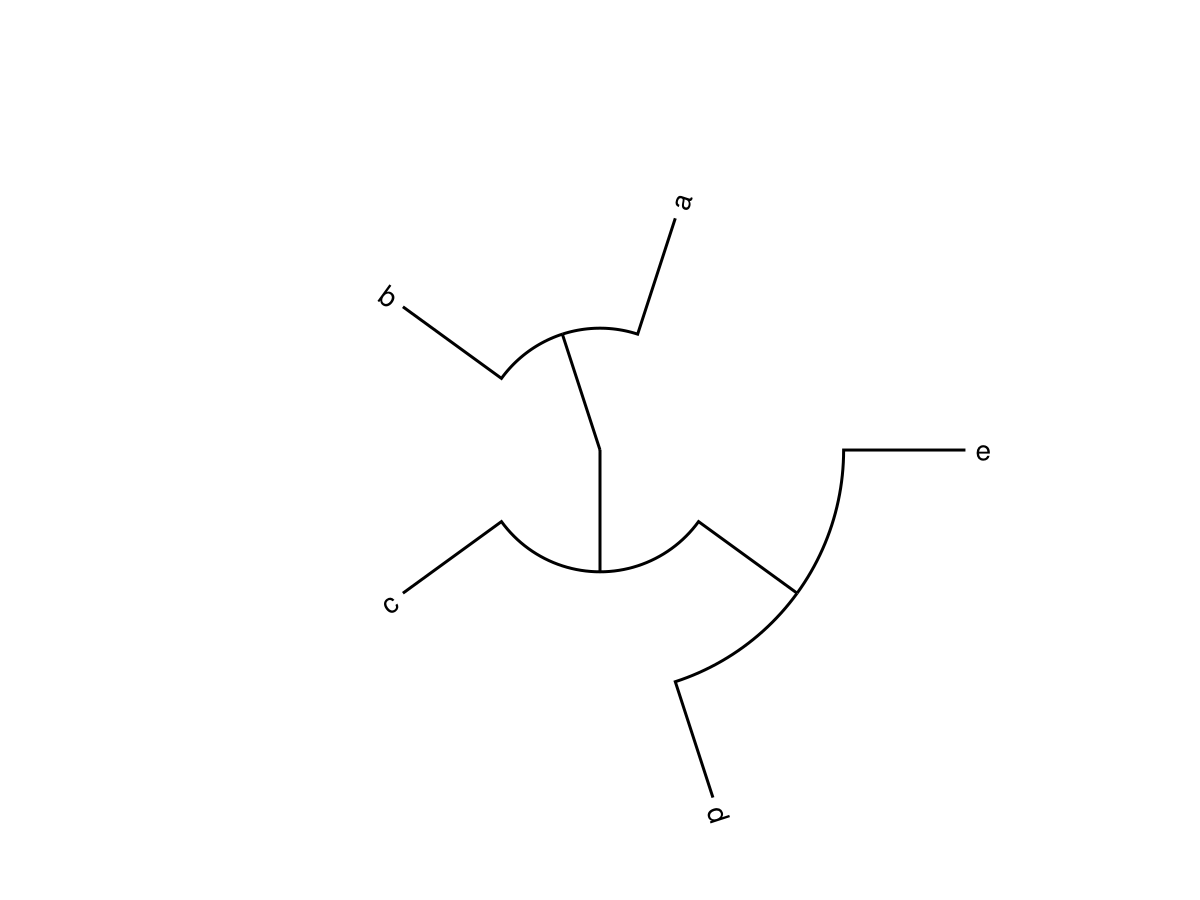

We can add tip labels

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.1))
hidedecorations!(ax)
hidespines!(ax)
tp = treeplot!(tree)
treelabels!(tp)
fig

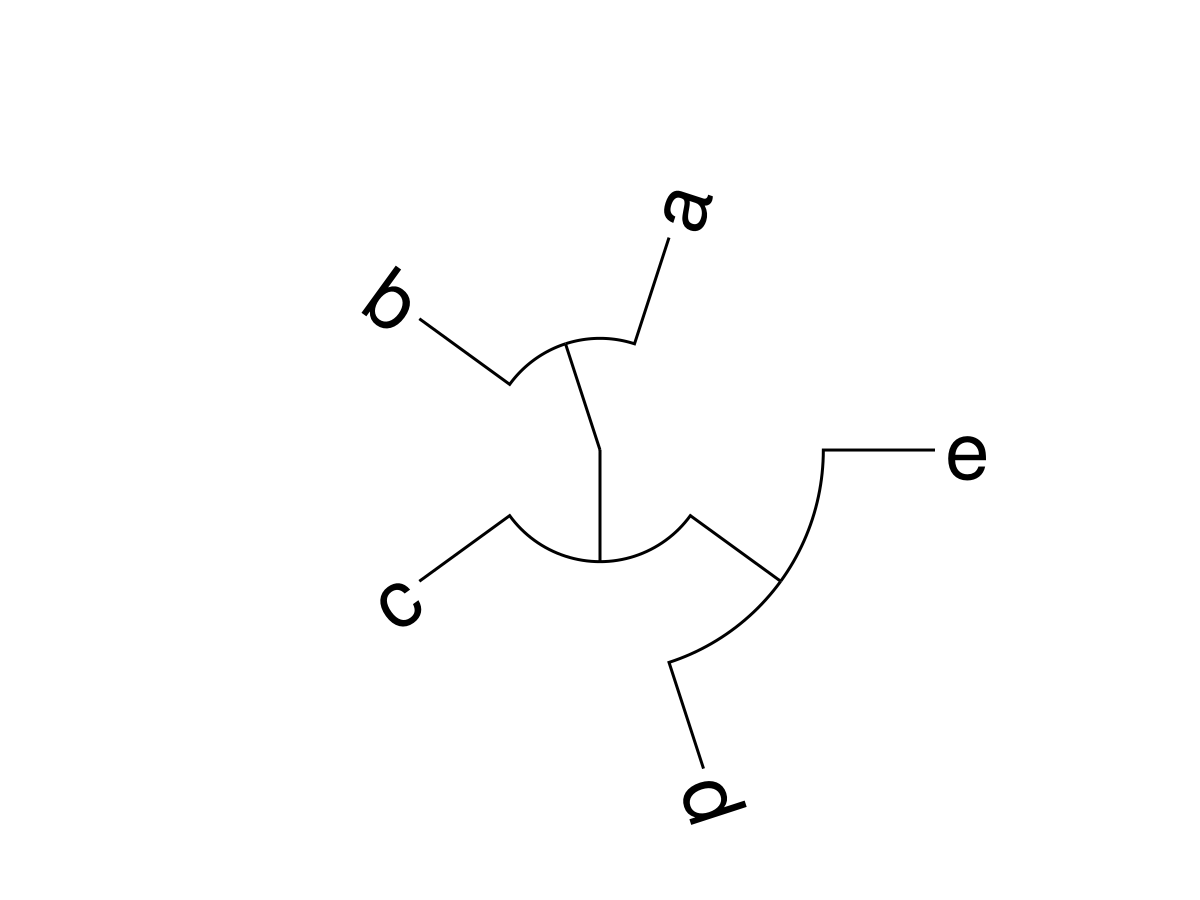

We can increase the tip label fontsize.

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.2))
hidedecorations!(ax)
hidespines!(ax)
tp = treeplot!(tree)
treelabels!(tp; fontsize = 40)
fig

Adjusting branch appearence

We can change the color of the branches

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.1))
hidedecorations!(ax)
hidespines!(ax)
tp = treeplot!(tree; branchcolor = :orange)
treelabels!(tp; fontsize = 20)
fig

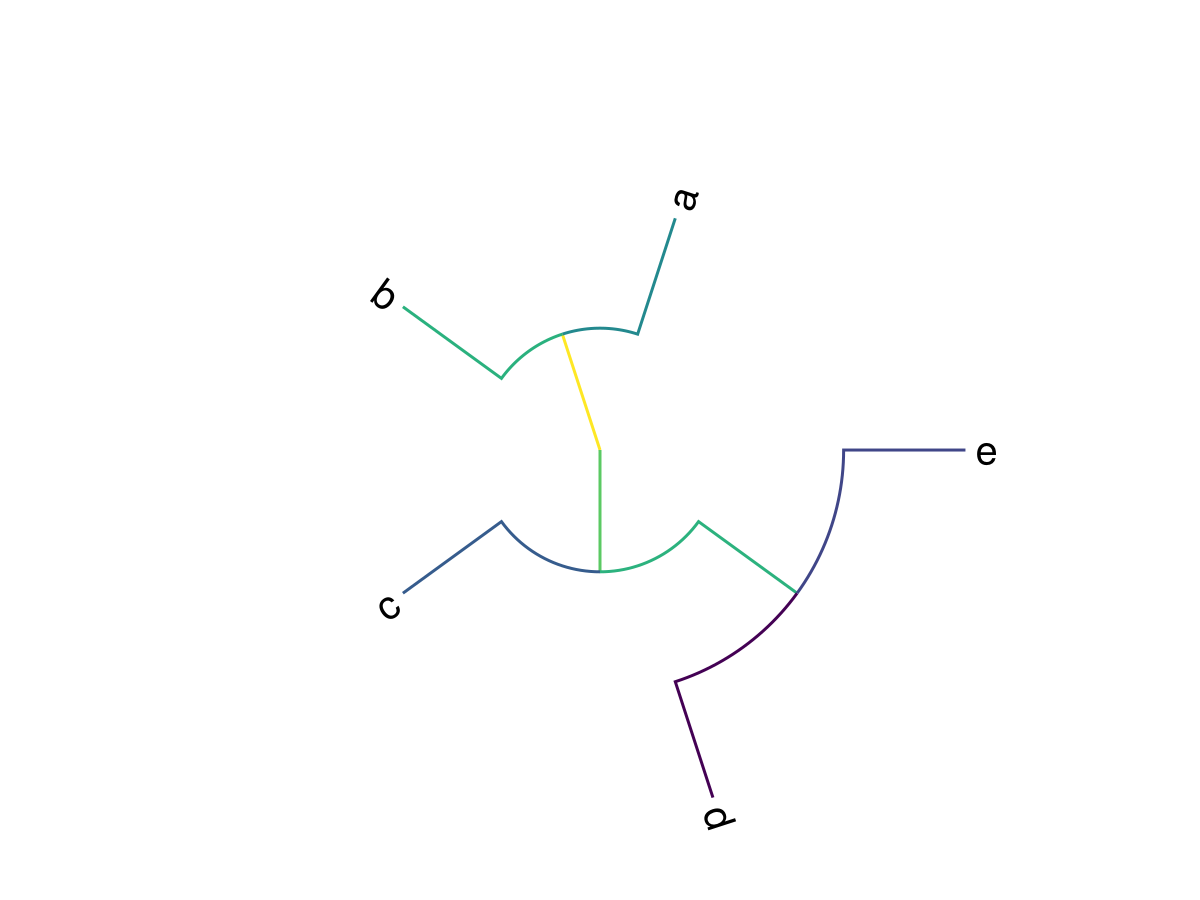

We can change the line color based on info in the tree

branchcolors = map(PreOrderDFS(tree)) do node
    hash(node)
end

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.1))
hidedecorations!(ax)
hidespines!(ax)
tp = treeplot!(tree; branchcolor = branchcolors)
treelabels!(tp; fontsize = 20)
fig

For instance if we have external data about each node in the tree

tree_data =
    Dict(node => (; support = rand(), favorite_number = rand(1:5)) for node in PreOrderDFS(tree))

Dict{Any, @NamedTuple{support::Float64, favorite_number::Int64}} with 9 entries:
  :a                         => (support = 0.391602, favorite_number = 4)
  :b                         => (support = 0.459686, favorite_number = 4)
  (:a, :b)                   => (support = 0.315346, favorite_number = 5)
  (:c, (:d, :e))             => (support = 0.472252, favorite_number = 3)
  :d                         => (support = 0.554905, favorite_number = 3)
  :e                         => (support = 0.554149, favorite_number = 2)
  :c                         => (support = 0.683826, favorite_number = 5)
  (:d, :e)                   => (support = 0.755764, favorite_number = 2)
  ((:a, :b), (:c, (:d, :e))) => (support = 0.0235308, favorite_number = 1)

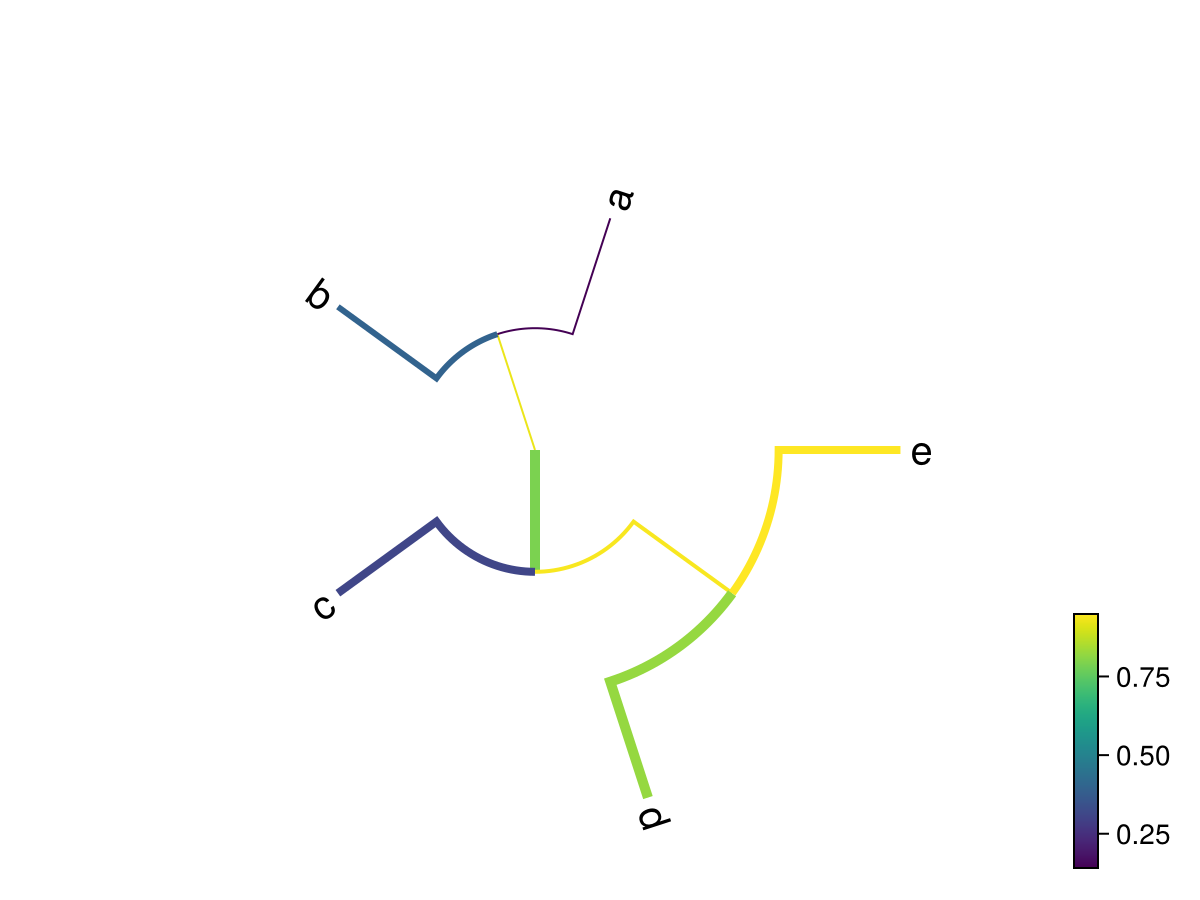

then we can plot support as the color and the favorite number as the line width.

branchcolors = map(PreOrderDFS(tree)) do node
    tree_data[node].support
end

branchwidths = map(PreOrderDFS(tree)) do node
    tree_data[node].favorite_number
end

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.1))
hidedecorations!(ax)
hidespines!(ax)

p = treeplot!(tree; branchcolor = branchcolors, branchwidth = branchwidths)
treelabels!(tp; fontsize = 20)
Colorbar(fig[1, 2][3, 1], p)
fig

Markers for each node

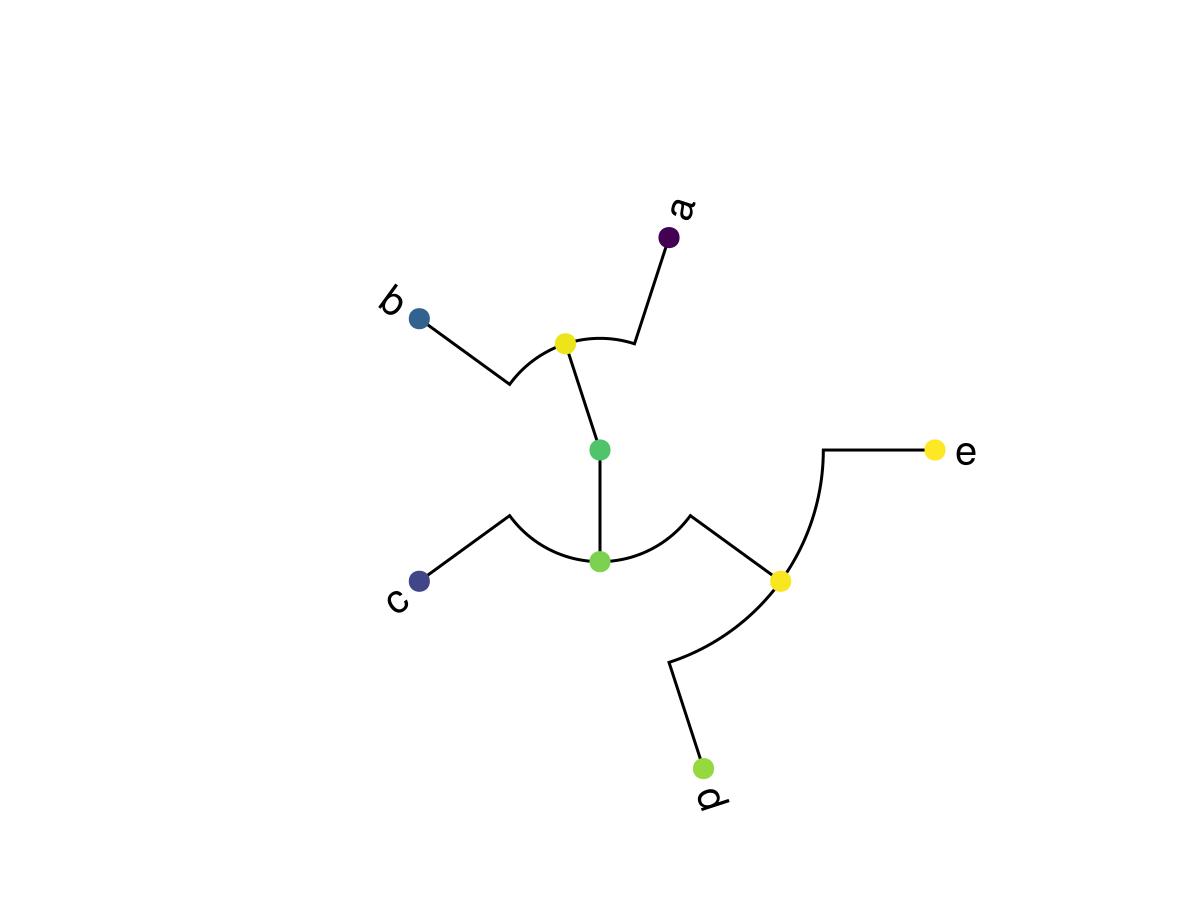

We can employ markers in the nodes to showcase the tree's information

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.2))
hidedecorations!(ax)
hidespines!(ax)
tp=treeplot!(tree;)
treelabels!(tp; fontsize = 20, labeloffset = (0.0, 10))
treescatter!(tp; color = branchcolors, markersize = 15)
fig

treescatter(tp) is equivalent to scatter(tp.orderedpoints) so all the keyword arguments for scatter should work. The points are ordered according to the result of PreOrderDFS(tree), attributes can be assocated by matching that order.

Other adjustments of style

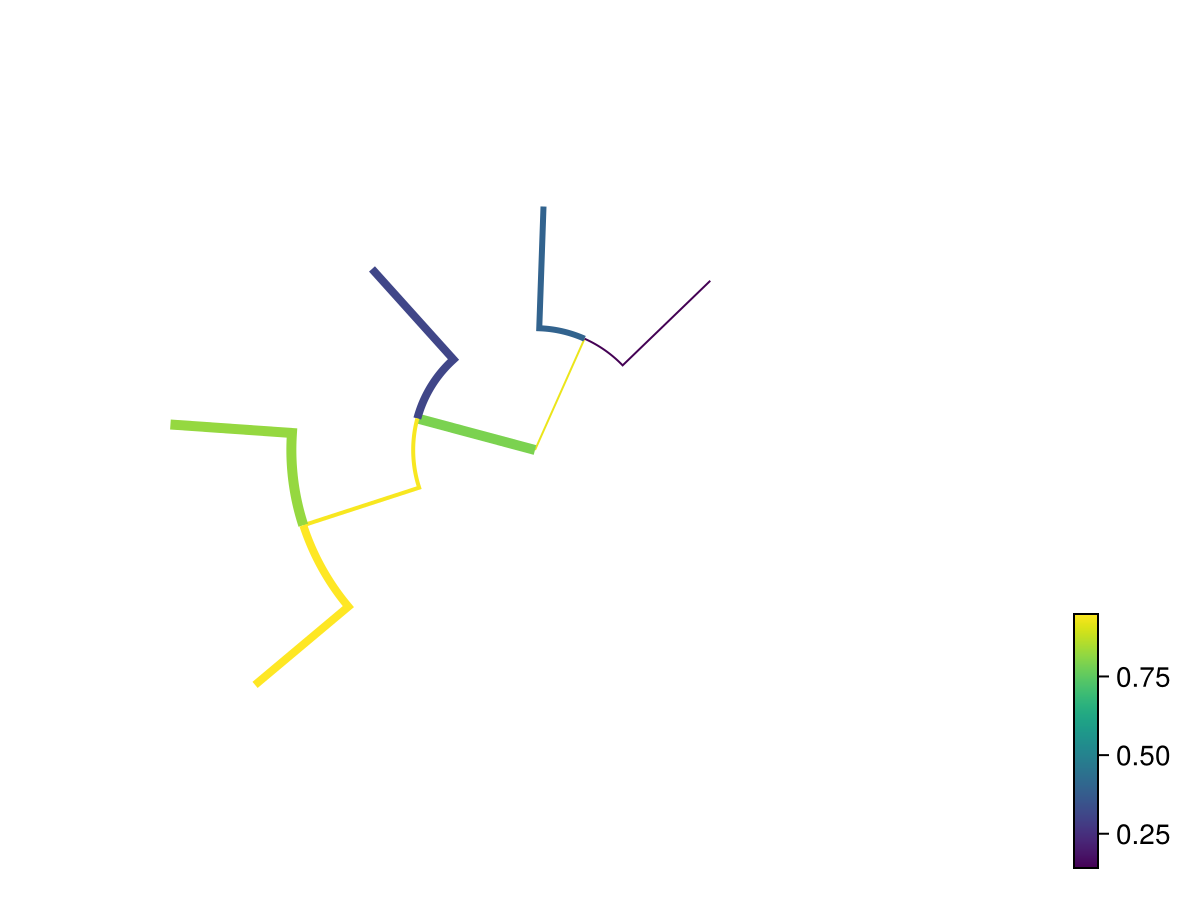

For a PolarAxis, We can also control the span across which the tree is plotted. with the openangle parameter

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.1))
hidedecorations!(ax)
hidespines!(ax)
p = treeplot!(
    tree;
    branchcolor = branchcolors,
    branchwidth = branchwidths,
    openangle = deg2rad(140),
)
Colorbar(fig[1, 2][3, 1], p)
fig
