Basic tree plot

basic setup

using CairoMakie, BasicTreePlots
using AbstractTrees
update_theme!(Theme(size = (500, 500)))

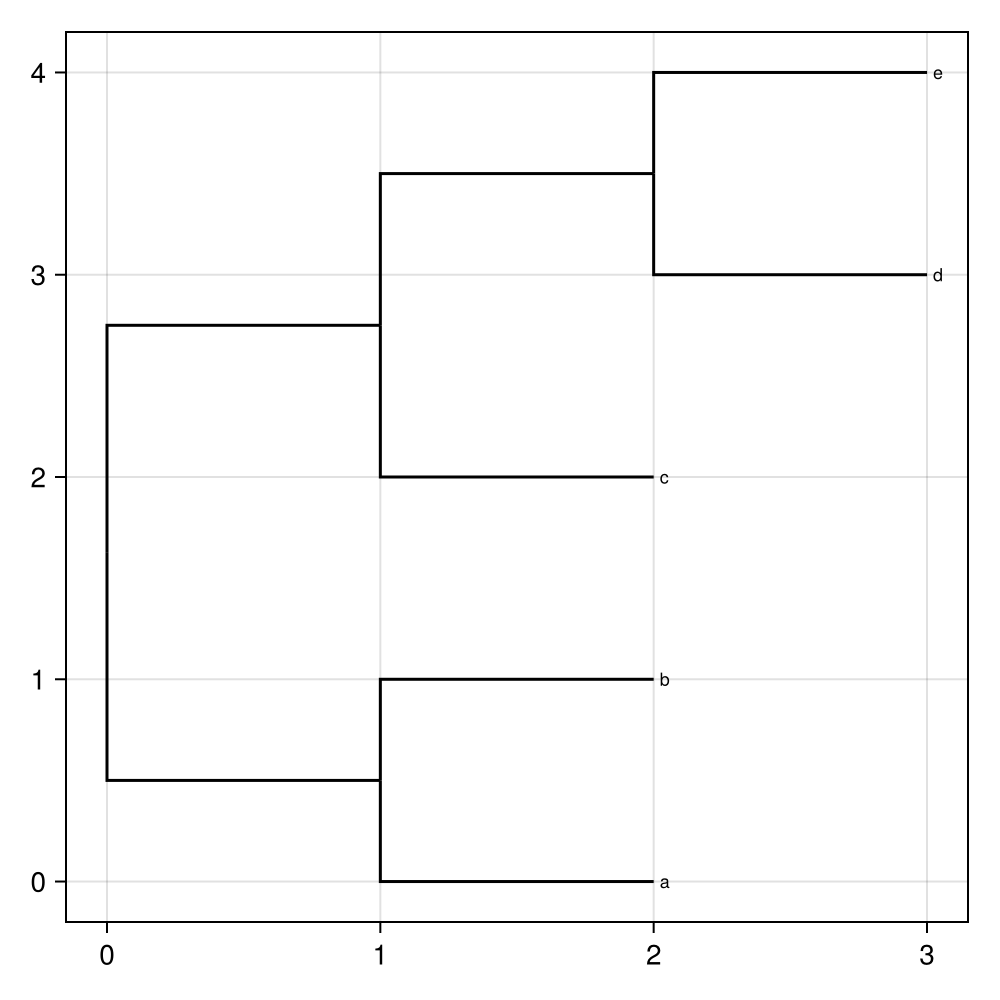

plot the tree

tree = ((:a, :b), (:c, (:d, :e)))
treeplot(tree)
Example block output

Because most nested collections in julia have AbstractTrees.children defined they can be plotted with treeplot.

We might want to just look at the tree rather than the axis

fig = Figure()
ax = Axis(fig[1, 1])
hidedecorations!(ax)
hidespines!(ax)
treeplot!(tree)
fig
Example block output

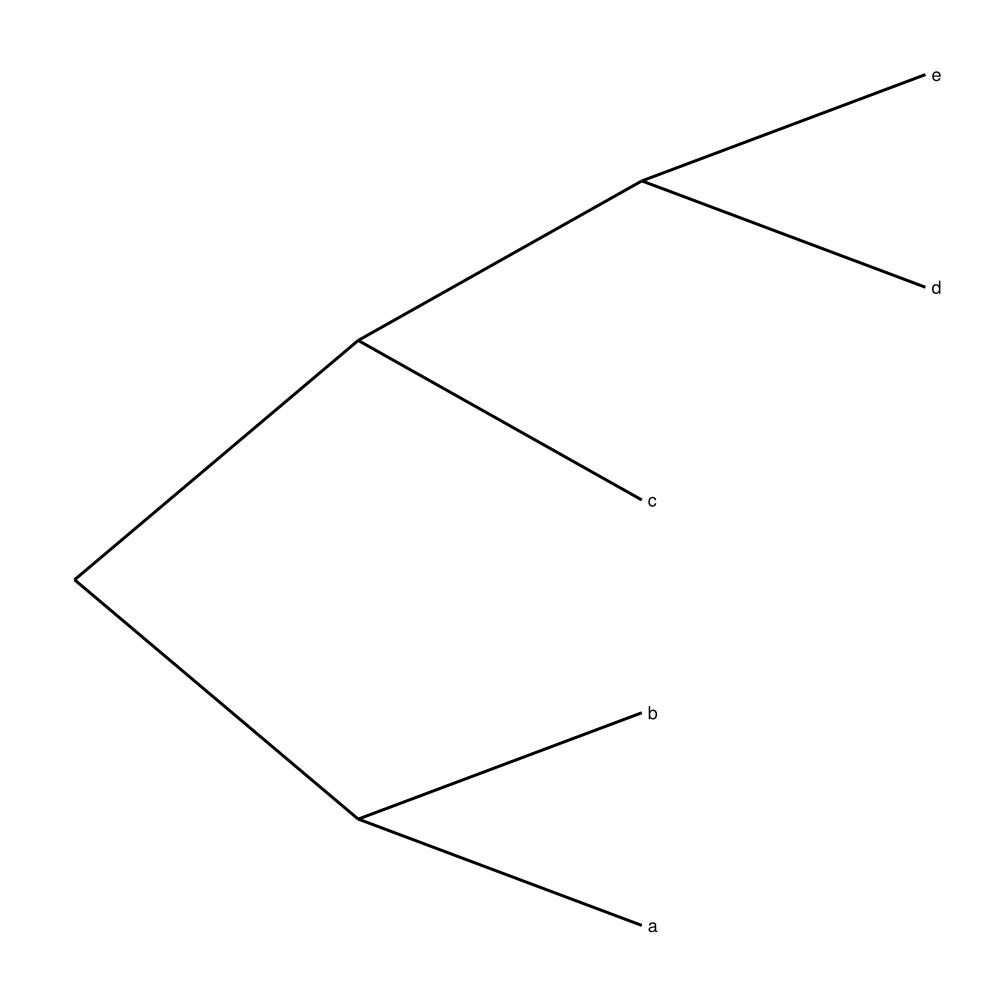

Rather than the square branches we can use straight branches

fig = Figure()
ax = Axis(fig[1, 1])
hidedecorations!(ax)
hidespines!(ax)
treeplot!(tree; branchstyle = :straight)
fig
Example block output

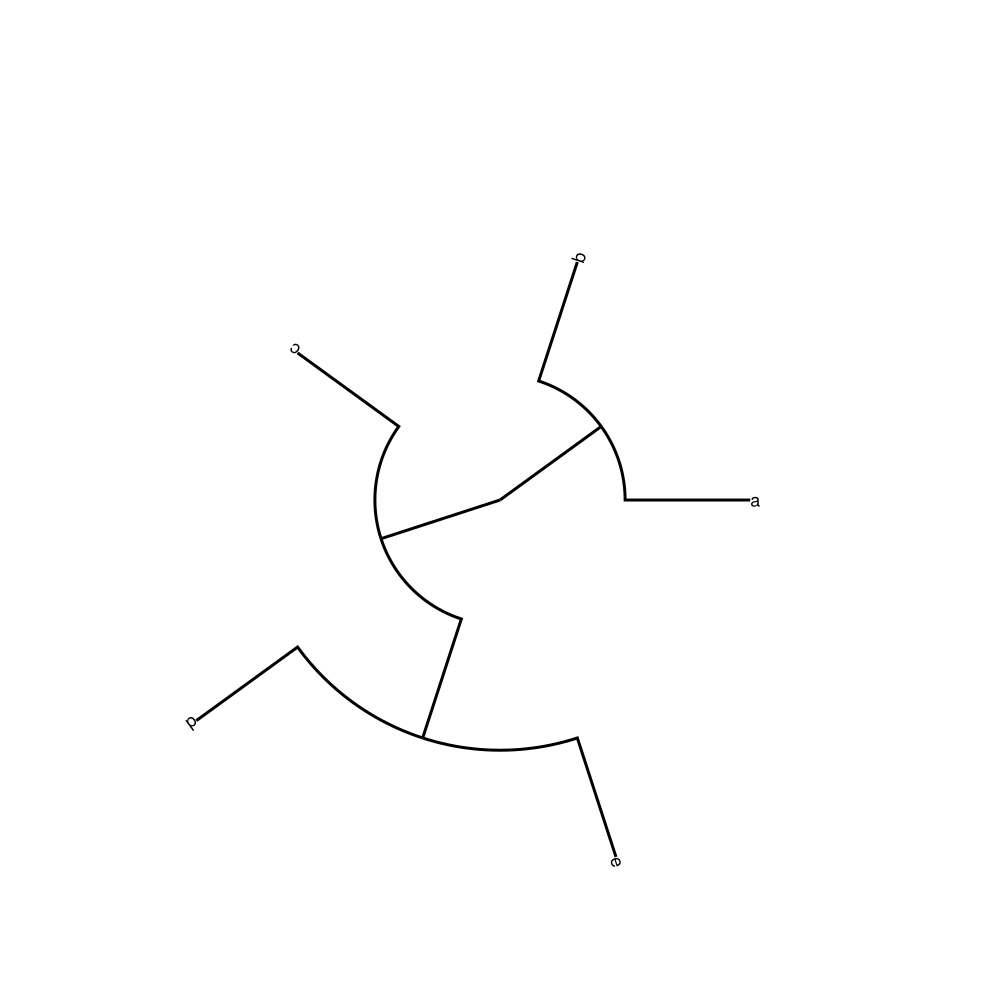

We can plot onto a Polar axis for a circular layout

fig = Figure()
ax = PolarAxis(fig[1, 1])
hidedecorations!(ax)
hidespines!(ax)
treeplot!(tree)
fig
Example block output

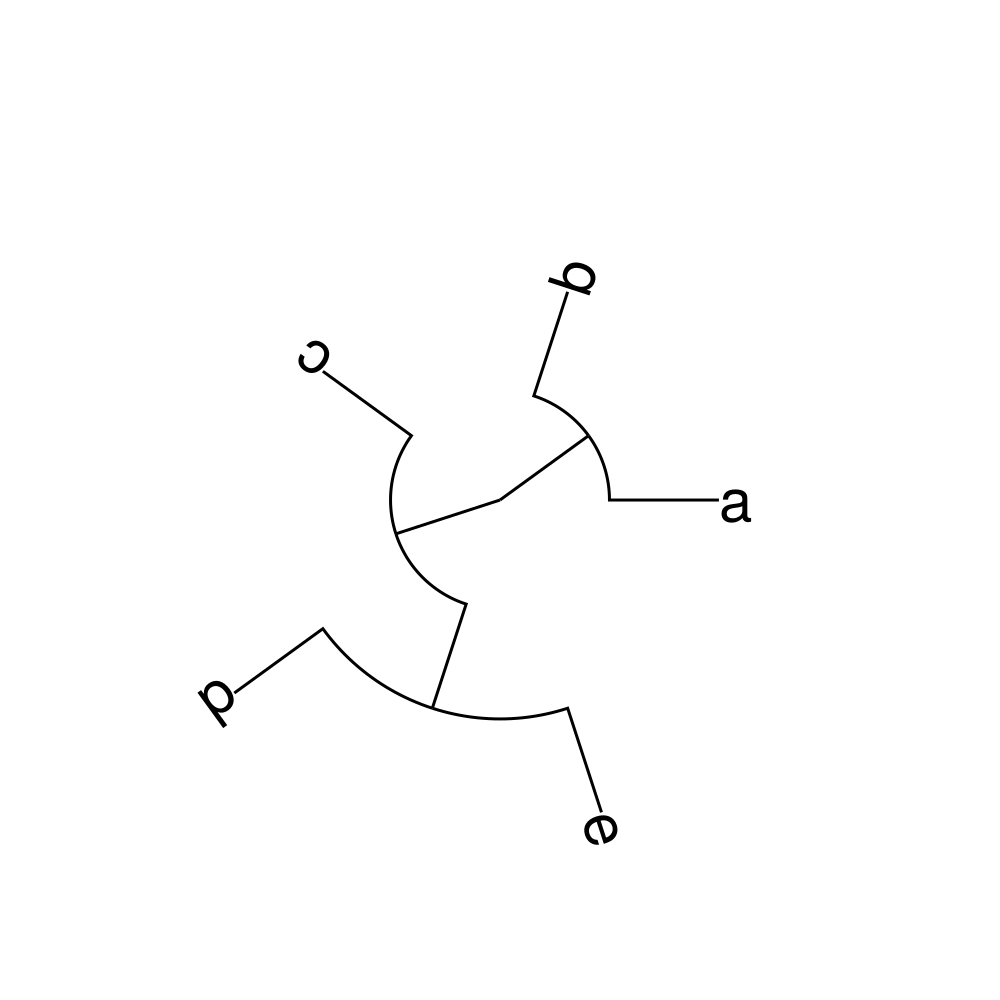

We can increase the tip label fontsize.

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.2))
hidedecorations!(ax)
hidespines!(ax)
treeplot!(tree; tipfontsize = 30)
fig
Example block output

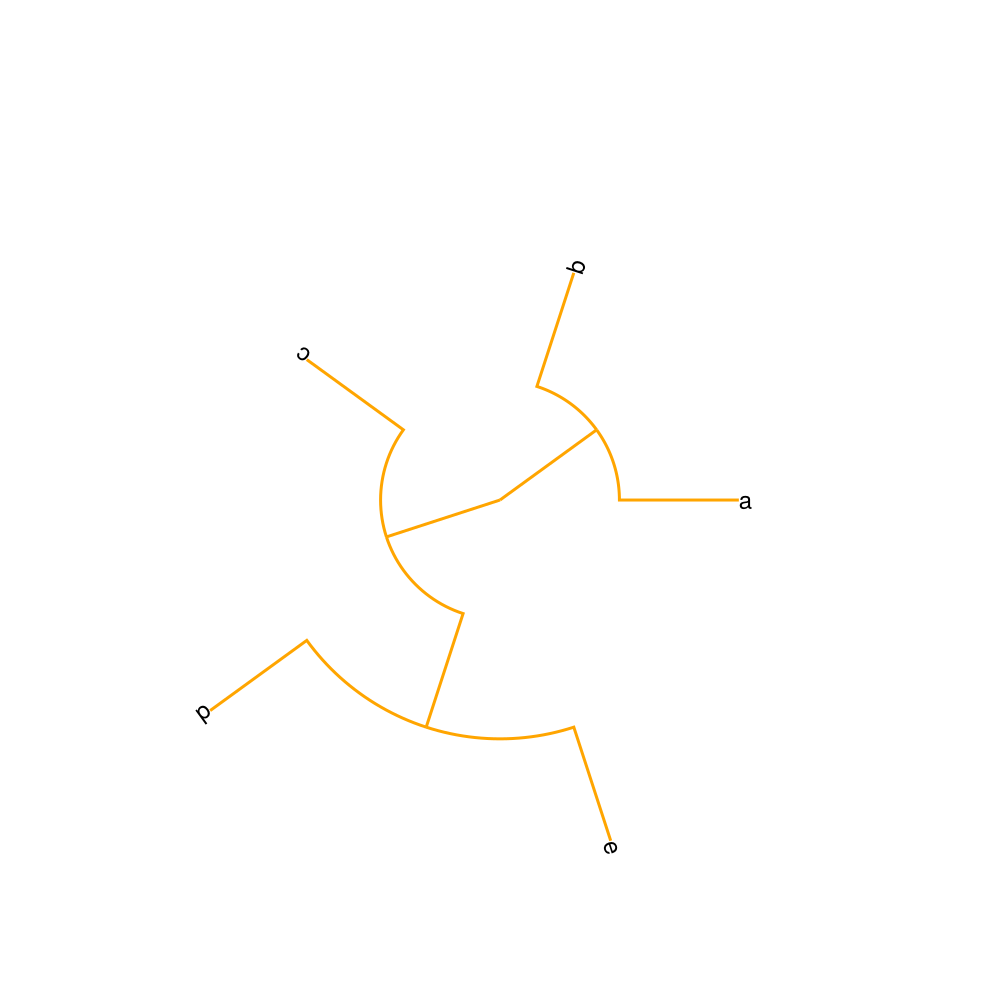

We can change the line color

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.1))
hidedecorations!(ax)
hidespines!(ax)
treeplot!(tree; linecolor = :orange, tipfontsize = 12)
fig
Example block output

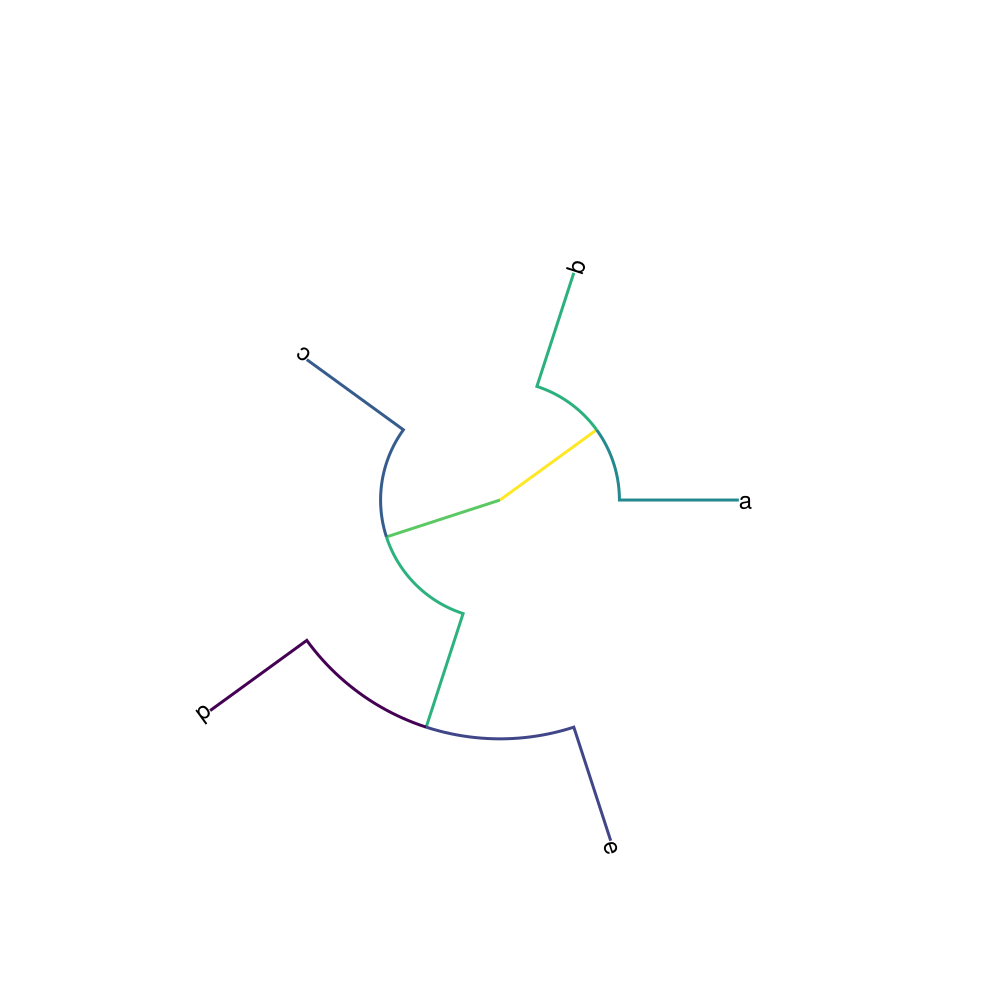

We can change the line color based on info in the tree

branchcolors = map(PreOrderDFS(tree)) do node
    hash(node)
end

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.1))
hidedecorations!(ax)
hidespines!(ax)
treeplot!(tree; linecolor = branchcolors, tipfontsize = 12)
fig
Example block output

For instance if we have external data about each node in the tree

tree_data = Dict(
    node => (; support = rand(), favorite_number = rand(1:5)) for node in PreOrderDFS(tree)
)
Dict{Any, @NamedTuple{support::Float64, favorite_number::Int64}} with 9 entries:
  :a                         => (support = 0.0337978, favorite_number = 3)
  :b                         => (support = 0.376219, favorite_number = 4)
  (:a, :b)                   => (support = 0.768352, favorite_number = 1)
  (:c, (:d, :e))             => (support = 0.451249, favorite_number = 4)
  :d                         => (support = 0.576121, favorite_number = 5)
  :e                         => (support = 0.0131166, favorite_number = 2)
  :c                         => (support = 0.0054367, favorite_number = 5)
  (:d, :e)                   => (support = 0.554339, favorite_number = 2)
  ((:a, :b), (:c, (:d, :e))) => (support = 0.0334872, favorite_number = 5)

then we can plot support as the color and the favorite number as the line width.

branchcolors = map(PreOrderDFS(tree)) do node
    tree_data[node].support
end

branchwidths = map(PreOrderDFS(tree)) do node
    tree_data[node].favorite_number
end

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.1))
hidedecorations!(ax)
hidespines!(ax)
p = treeplot!(tree; linecolor = branchcolors, linewidth = branchwidths, tipfontsize = 12)
Colorbar(fig[1, 2][3, 1], p)
fig
Example block output

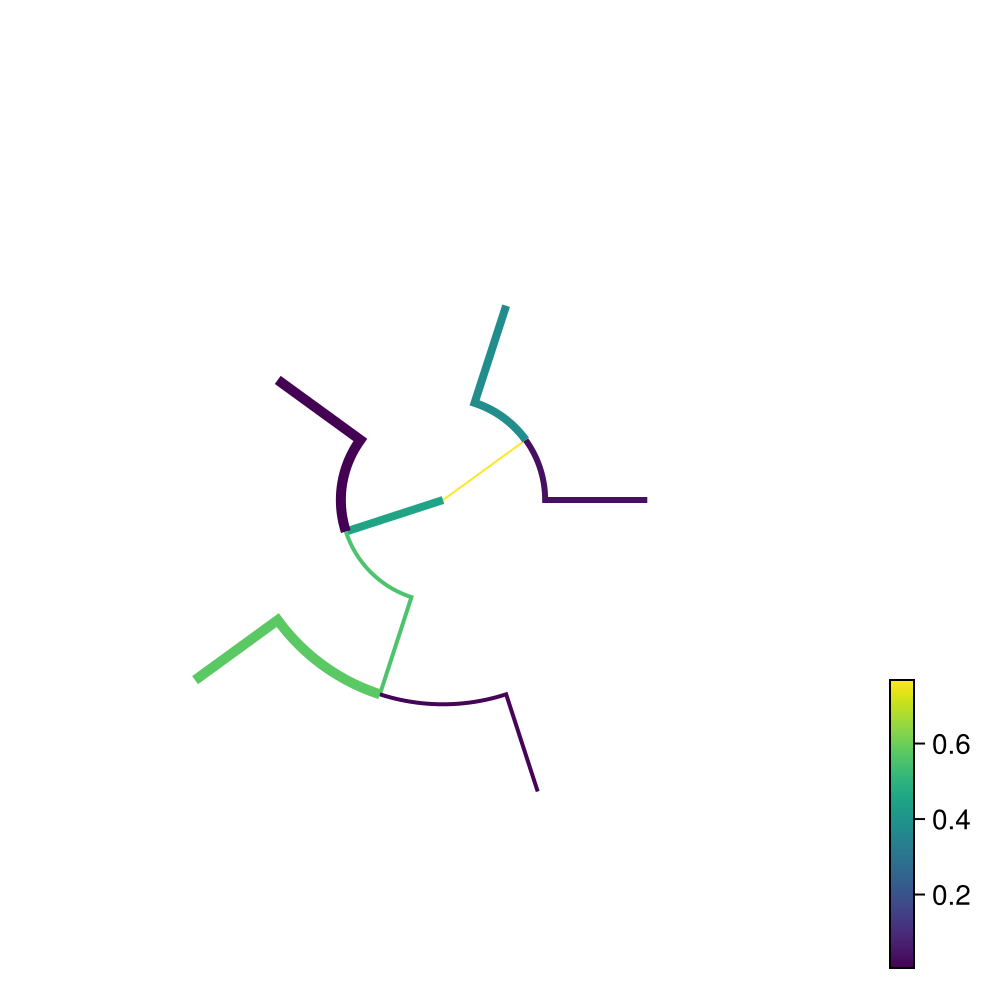

if we have too many leaf tips to read their labels anyway we can turn off the label visibility

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.1))
hidedecorations!(ax)
hidespines!(ax)
p = treeplot!(
    tree;
    linecolor = branchcolors,
    linewidth = branchwidths,
    tipfontsize = 12,
    tipannotationsvisible = false,
)
Colorbar(fig[1, 2][3, 1], p)
fig
Example block output

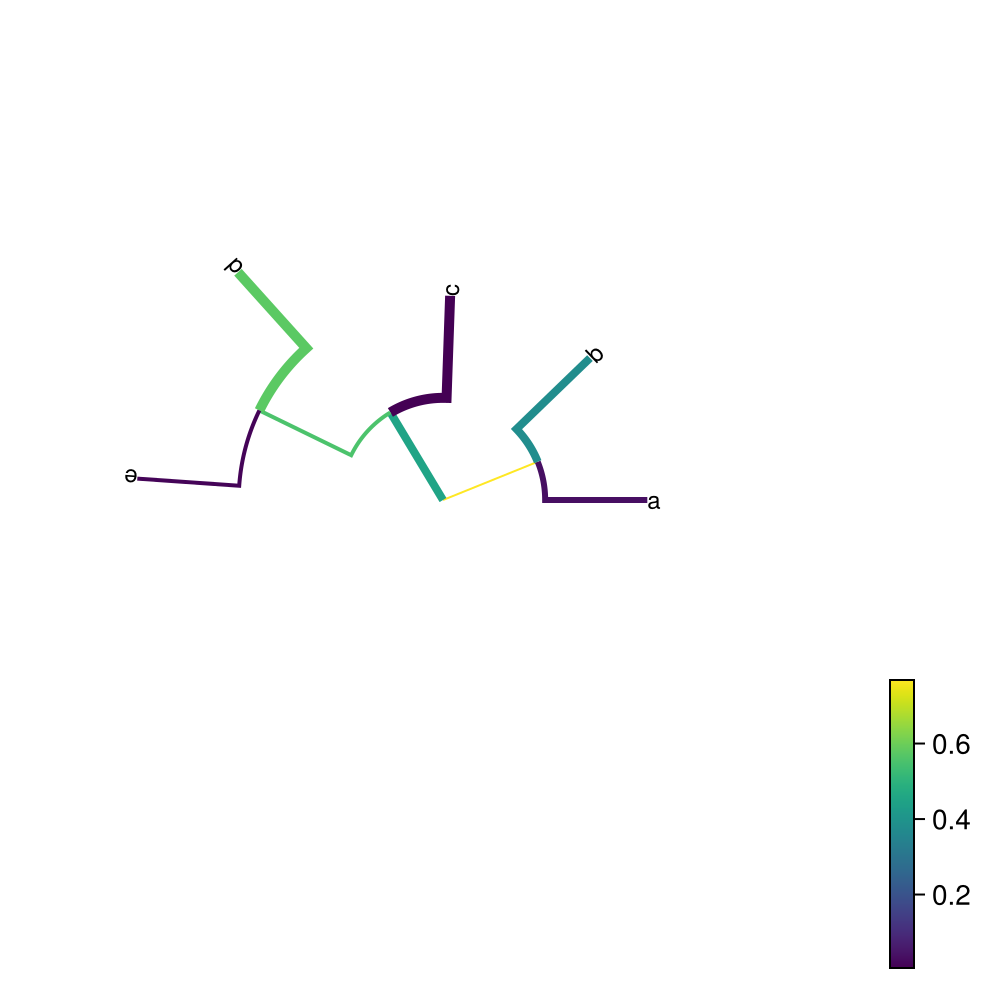

For a PolarAxis, We can also control the span across which the tree is plotted. with the openangle parameter

fig = Figure()
ax = PolarAxis(fig[1, 1], rautolimitmargin = (0.0, 0.1))
hidedecorations!(ax)
hidespines!(ax)
p = treeplot!(
    tree;
    linecolor = branchcolors,
    linewidth = branchwidths,
    tipfontsize = 12,
    openangle = deg2rad(140),
)
Colorbar(fig[1, 2][3, 1], p)
fig
Example block output
